Ubuntu on Dell Latitude E6420 with NVidia and Broadcom

My company sold old laptops to employees and I decided to use the chance to get an affordable and legally licensed Windows 10 system - a Dell Latitude E6420. Unfortunately the system has a Broadcom Wifi card and also ships with an NVidia graphics card which require extra work on Ubuntu 16.04 Xenial Xerus.

After some manual configuration the system works quite well with a power consumption of about 10-15W while writing this blog article. Switching between the Intel and the NVidia graphics card is simple (with a GUI program and requires a logout-login), for most use cases I don't need the NVidia card in any case.

Windows 10 also works well, although it does not support all devices. However, the combined NVidia / Intel graphics systems works better on Windows than on Linux.

In detail, I took the following steps to install an Ubuntu 16.04 and Windows 10 dual boot system.

Step-by-Step Installation

Requirements

  • Either a wired network connection or a USB wifi dongle that works in Ubuntu without additional drivers.
  • 4GB USB thumb drive or 2 empty DVDs or 1 re-writable DVD
  • 2 hours time

Install Windows

  1. Update the firmware to version A23 (use the preinstalled Windows 7 for this task)
  2. Go through the BIOS setup.
    1. Make sure to switch the system to UEFI mode and enable booting off USB or DVD. This really simplifies the multi-OS setup as all operating systems share the same EFI system partition
    2. Download the Windows 10 media creator tool and use it to create a USB drive or DVD
    3. Insert the installation media and start the laptop. Press F12 to open the BIOS menu and select the installation media in the UEFI section.
    4. Install Windows 10. In the hard disk setup simply delete all partitions so that Windows 10 will create its default layout.
    5. Let Windows 10 do its job, rebooting several times. Use the provided Windows 7 product key for Windows 10 and let it activate over the Internet.
    6. All basic drivers will install automatically, some question marks remain in the device manager. Dell does not provide official Windows 10 drivers, so one would have to search the internet for specific solutions. However, Dell provides an overview page for Windows 10 on E6420.

      Install Ubuntu

      1. Create the Ubuntu installation media.
      2. Boot the laptop. Press F12 when it starts and select the installation media in the UEFI section of the BIOS menu.
      3. Select "Install Ubuntu" in the boot menu. Choose to install Ubuntu together with Windows. In the disk partitioning dialog reduce the size of the Windows partition to make room for Ubuntu. Leave Windows at least 50GB, otherwise you won't be able to do much with it.
      4. Let Ubuntu finish its installation and boot into Ubuntu.

      Optimize and Configure Ubuntu

      The default installation needs some additional packages to work well. Make sure that Ubuntu has an internet connection (wired or via a supported USB wifi dongle).

      Note: For the Broadcom WiFi adapter there are several possible drivers in Ubuntu. By default it will install the wl driver which was not working well for me and caused crashes. The b43 driver works for me, although the Wifi performance is rather low.

      Note: The HDMI output of the laptop is connected to the NVidia graphics chip. Therefore you can use it only when the system uses the
      1. Update Ubuntu and reboot:
        sudo apt update
        sudo apt full-upgrade
        sudo reboot
      2. Install the following packages and reboot:
        sudo apt install firmware-b43-installer \
            nvidia-361 nvidia-prime bbswitch-dkms \
            vdpauinfo libvdpau-va-gl1 \
            mesa-utils powertop
      3. Confirm that the builtin WiFi works now.
      4. Add the following line to /etc/rc.local before the exit 0 line:
        powertop --auto-tune
      5. Reboot
      6. Check that 3D acceleration works with NVidia:
        glxinfo | grep renderer\ string
        OpenGL renderer string: NVS 4200M/PCIe/SSE2
      7. Check that VDPAU acceleration works with NVidia:
        vdpauinfo | grep string
        Information string: NVIDIA VDPAU Driver Shared Library  361.42  Tue Mar 22 17:29:16 PDT 2016
      8. Open nvidia-settings and switch to the Intel GPU (you will have to confirm with your password):
      9. Logout and log back in. Confirm that 3D acceleration works now:
        glxinfo | grep renderer\ string
        OpenGL renderer string: Mesa DRI Intel(R) Sandybridge Mobile
      10. Confirm that the NVidia graphics card is actually switched off:
        cat /proc/acpi/bbswitch
        0000:01:00.0 OFF
      11. Confirm that VDPAU acceleration works:
        vdpauinfo | grep string
        libva info: VA-API version 0.39.0
        libva info: va_getDriverName() returns 0
        libva info: Trying to open /usr/lib/x86_64-linux-gnu/dri/i965_drv_video.so
        libva info: Found init function __vaDriverInit_0_39
        libva info: va_openDriver() returns 0
        Information string: OpenGL/VAAPI/libswscale backend for VDPAU

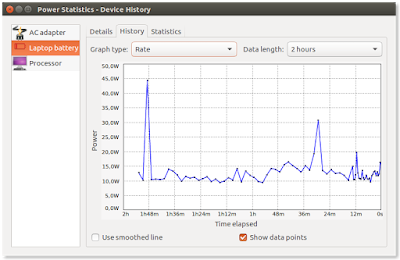

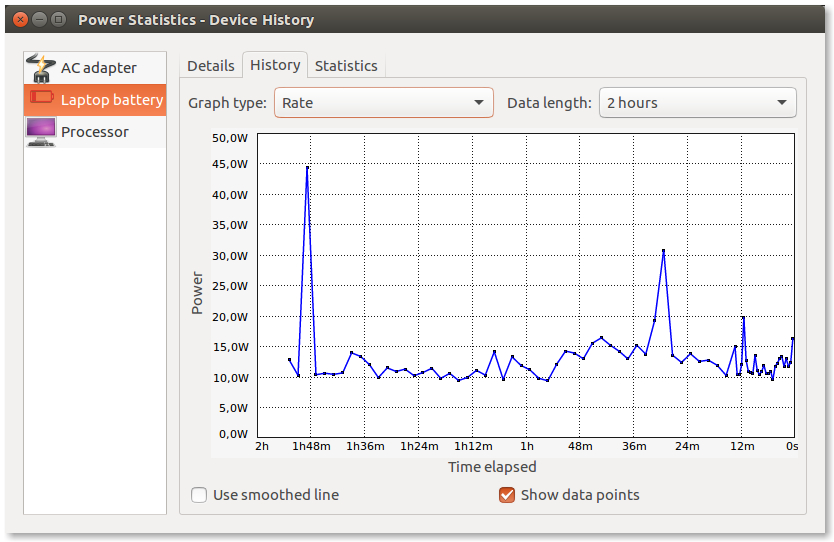

      12. Check that the power consumption is somewhere between 10W and 15W:
